If the Lancia 037 was a surgical scalpel, the Audi Quattro S1 E2 was a sledgehammer forged in a wind tunnel. By 1985, the Group B arms race had moved beyond mere traction; it was now a battle against lift and mass distribution. The S1 E2 remains the most extreme evolution of the Quattro lineage, a machine that redefined the relationship between forced induction and aerodynamic downforce.
Weight Distribution: The Polar Moment of Inertia Challenge
One of the primary engineering hurdles of the Quattro was its inherent front-heavy bias, with the entire inline-5 engine hanging ahead of the front axle. To mitigate the understeer described in Milliken’s Race Car Vehicle Dynamics, Audi engineers made a radical decision for the S1 E2: they moved the radiators, oil coolers, and the battery to the rear of the car. This shift not only improved the weight distribution to a nearly balanced 52/48 split but also allowed for a more aggressive front-end geometry and a reduced polar moment of inertia for faster rotation.
Aerodynamics: Harnessing the Katz Principles
The S1 E2 was one of the first rally cars to truly weaponize aerodynamics. The massive front "snowplow" spoiler and the towering rear wing were designed to create significant downforce at the relatively low speeds of rally stages. Applying the theories from Joseph Katz (Race Car Aerodynamics), these surfaces worked to stabilize the car during high-speed jumps and provide the vertical load necessary to keep the 500+ horsepower engine from breaking traction on loose surfaces, effectively turning air into mechanical grip.
The Inline-5 Turbo: Anti-Lag and Pressure Management
The heart of the S1 was the 2.1-liter inline-5, equipped with a KKK turbocharger pushing nearly 3 bar of boost. To solve the lag inherent in such a high-pressure system, Audi introduced an early "recirculation" or anti-lag system (ALS). By injecting fuel directly into the exhaust manifold to keep the turbine spinning off-throttle, the S1 ensured instantaneous boost response—a critical requirement for navigating the tight, technical sections of the San Remo or Monte Carlo rallies as documented in the Bosch Automotive Handbook.
Conclusion: Function in its Purest Form

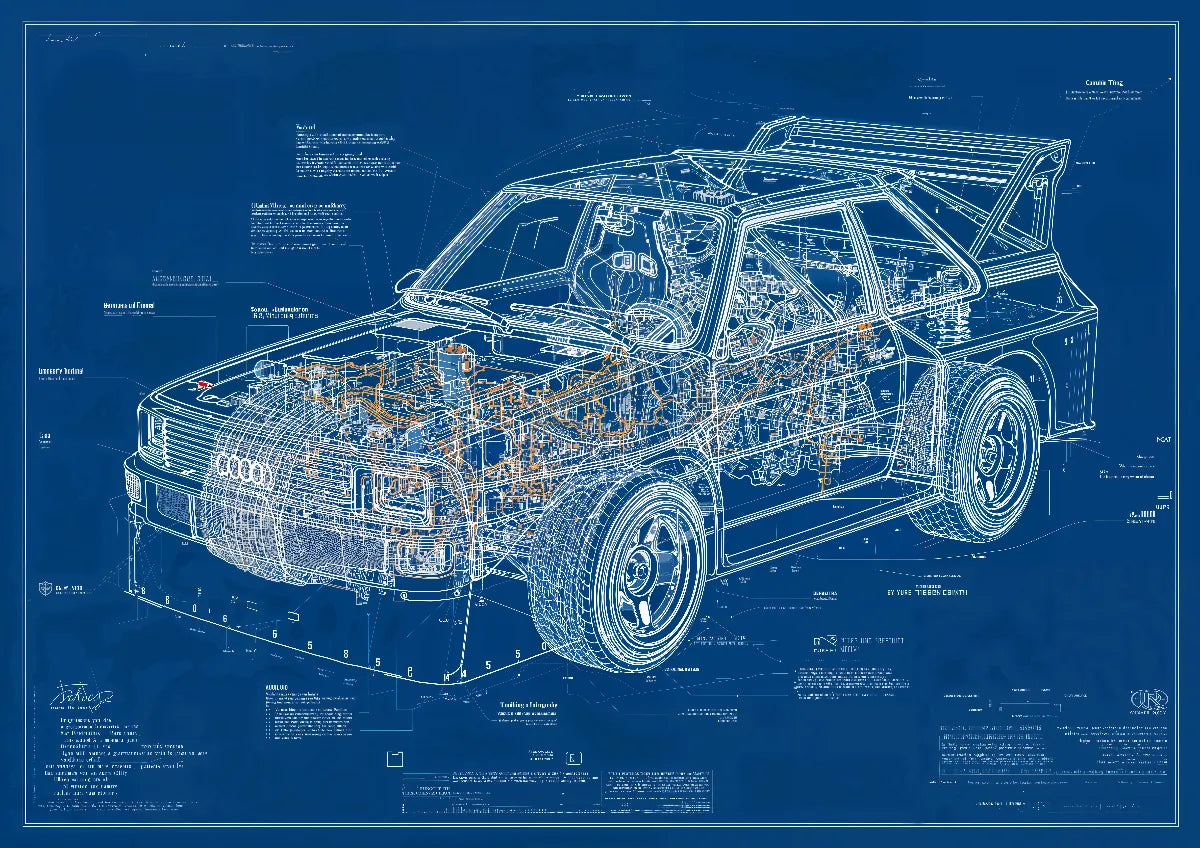

The Audi Quattro S1 E2 is the definition of "Engineering Aesthetics." It does not apologize for its brutalist appearance because every vent, winglet, and radiator duct is a response to a physics-based problem. Our R01 Series Blueprint: Audi Quattro S1 is more than art; it is a schematic of the era when engineering audacity knew no limits.
